Blackboard CXP Modify & Re-Import Workflow

0. About this guidebook

This guide is a practical workflow for diagnosing and fixing the import failures and runtime errors that occur when you take a CXP package exported from Blackboard (ArchiveExFile_*.zip), edit it locally, and re-import it into the same or a different course. It collects in one place the 8-point recipe distilled during the 2026-05-04 [Summer Term] fix marathon (DOCT-α v1→v11, UND-β v1→v6, GRAD-γ v1→v5), every successful Python script, and the absolute do-not-do list.

Audience

instructors / TAs who revise and re-import a course each term
anyone who needs a recipe to point a Codex/Claude Code-style coding agent at
new PMs / instructional designers migrating a course to Blackboard ULTRA for the first time

Scope conservatism This is a practical onboarding guide based on Blackboard ULTRA behavior observed on 2026-05-04. Blackboard internals change over time. Validate every fix in a sandbox course first before applying to production. The 8 defect classes are limited to those reproduced and resolved in this session; other failure modes require separate investigation.

Use cases this guide solves

You received a course export ZIP and on import see a "content item failed to convert" error.
Import succeeded but students click an assignment / discussion and nothing opens (silent runtime failure).
Each click appends a base64 access-code log reference like MjYwNTA0L*.
Due dates are still those of an older term.
You want to naturally add new content / images / URLs to a module.
You want to selectively import only one section for a quick update.

Scope limits

Blackboard's UI-side import dialog is not covered (varies by institution).
Building Block / LTI tool registration must be done by an admin.
The 8 defect classes here are limited to this session's incidents; other failure modes (LDAP, gradebook calculation columns, external-tool OAuth, etc.) require separate investigation.

1. Anatomy of a CXP package

1.1 Files in the ZIP

Unzipping an archive ZIP exported from Blackboard yields the following structure:

After unzipping ArchiveExFile_*.zip:
├─ imsmanifest.xml          <- package index (must be valid)
├─ .bb-package-info         <- Blackboard system metadata
├─ .bb-log-info             <- package build log (informational)
├─ .bb-package-sig          <- signature (no need to recompute after edits — Blackboard ignores it)
├─ res00001.dat             <- first resource (XML)
├─ res00002.dat
├─ ...
├─ resNNNNNN.dat            <- Nth resource
└─ csfiles/
   └─ home_dir/
      └─ __xid-NNNNNN_1.png <- embedded image / PDF / Word / Excel etc.
         __xid-NNNNNN_1.png.xml <- sidecar metadata

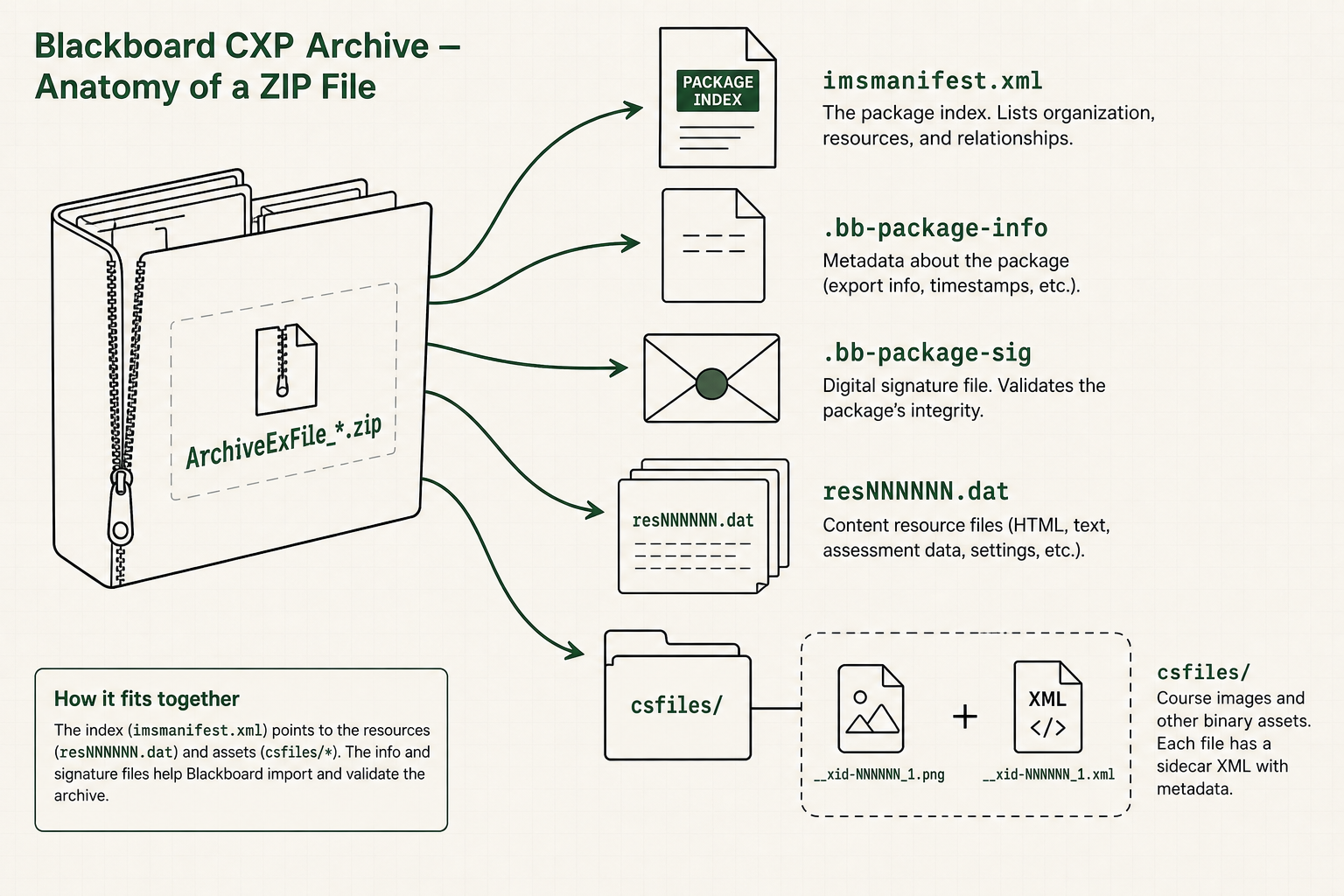

Anatomy of a Blackboard CXP archive ZIP file — Fig. 1Anatomy of a Blackboard CXP archive ZIP and how the parts fit together

Core principle Every package change must keep (1) the file system (.dat files + csfiles/) and (2) the imsmanifest.xml declarations in sync. Editing only one side causes either a silent failure or an explicit error at import time.

1.2 imsmanifest.xml — the package index

imsmanifest.xml follows the IMS Common Cartridge standard manifest format, with Blackboard extension attributes (bb:file, bb:title, bb:type) added. Two key blocks:

<manifest ...>
  <metadata>...</metadata>

  <organizations default="toc00001">
    <organization identifier="toc00001">
      <item identifier="itm00001" identifierref="res00007">
        <title>ROOT</title>
        <item identifier="itm00016" identifierref="res00047">
          <title>Module 6: Capstone</title>
          ...
        </item>
      </item>
    </organization>
  </organizations>

  <resources>
    <resource bb:file="res00001.dat" bb:title="Child Courses"
              identifier="res00001" type="course/x-bb-childcourses"
              xml:base="res00001"/>
    <resource bb:file="res00047.dat" bb:title="Module 6: Capstone"
              identifier="res00047" type="resource/x-bb-document"
              xml:base="res00047"/>
    ...
  </resources>
</manifest>

<organizations> = The tree the student sees (Module → Lesson → Item structure)
<resources> = Declarations for every .dat file and csfile
Each <item>'s identifierref must match a <resource>'s identifier
Each <resource>'s bb:file must match the actual file

1.3 The LINK chain — how visible items connect to underlying data

asmt-test-link / forumlink / courselink CONTENT items do NOT carry their data directly. a separate LINK resource binds the wrapper to the underlying data:

res00071 (CONTENT, asmt-test-link, ULTRA marker)  ← visible item clicked by the student
   │
   ↓ (LINK is walked)
   │
res00118 (LINK, ISAVAILABLE=true)                  ← binding
   │
   ↓ (REFERREDTO)
   │
res00100 (COURSE_ASSESSMENT)                       ← assignment metadata
   │
   ↓ (ASMTID)
   │
res00015 (questestinterop)                         ← actual assessment data

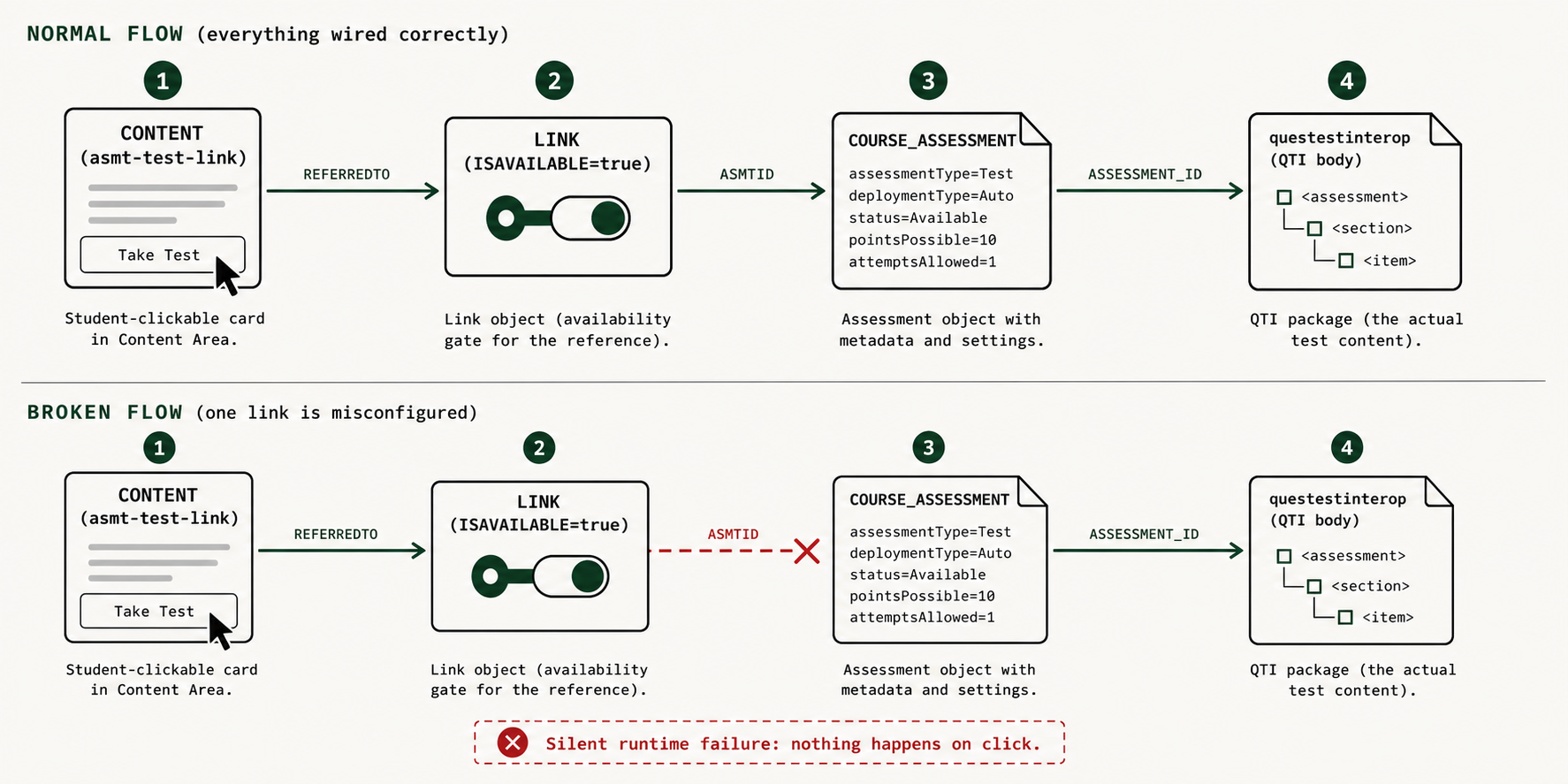

LINK chain — normal flow vs broken flow — Fig. 2Normal vs broken LINK chain — silent runtime failure surfaces only on click

Most common pitfall If any link in this 4-step chain is broken (missing LINK, ISAVAILABLE=false, COURSE_ASSESSMENT gone, ASMTID pointing to the wrong target) nothing happens when the student clicks. No convert-time error; the failure surfaces only at runtime.

2. Standard workflow

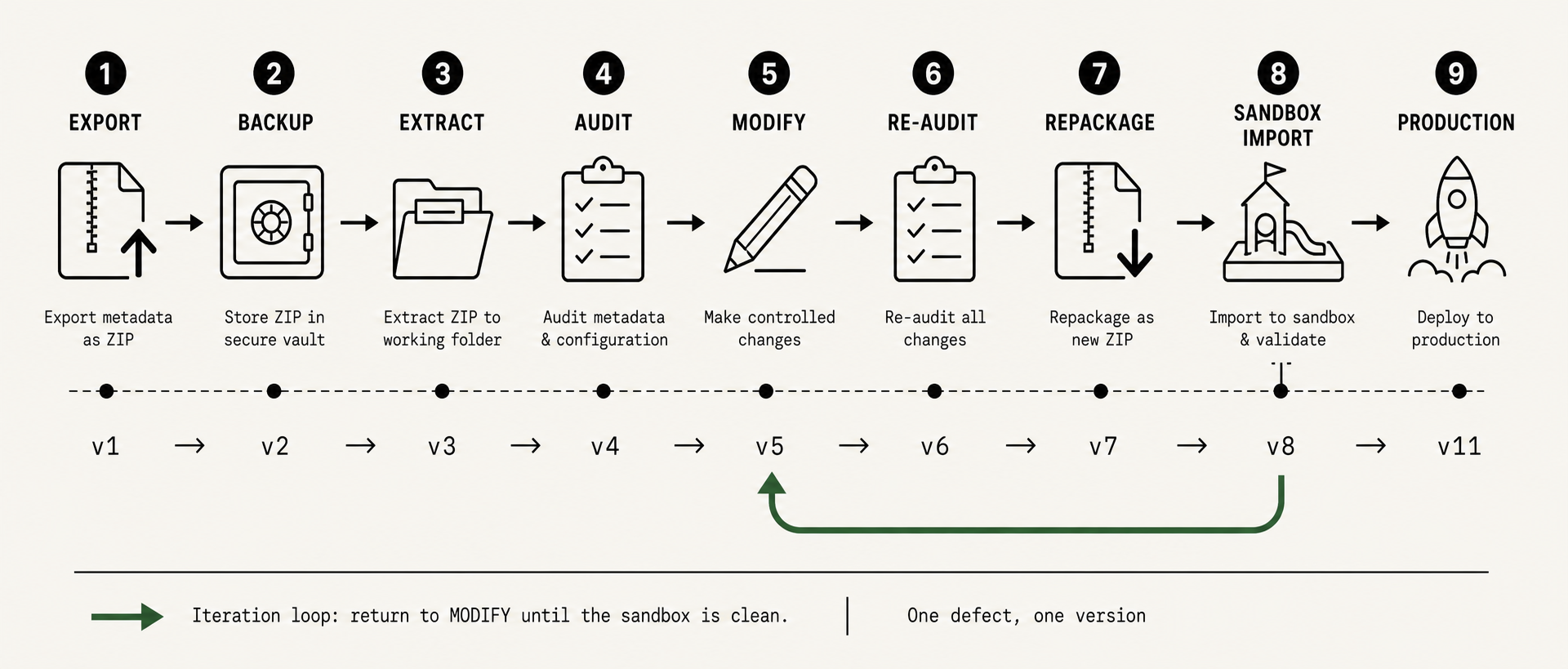

9-step Blackboard CXP modify-and-reimport workflow timeline — Fig. 5Nine-step modify-and-reimport workflow with the v(N) iteration loop

Course revision proceeds in the following order:

Export — archive from the original course (Blackboard UI: Packages and Utilities → Export Course).
Backup — store the exported ZIP separately under e.g. 03_Original-ZIPs-Backup/. Never modify this file.
Extract — unzip into a working directory.
Audit (sec. 4) — run the 8-point recipe to surface baseline defects.
Modify — edit content, add new material, update dates.
Re-audit — run the 8-point again after editing. Edits themselves can introduce new defects.
Repackage — compress back to a ZIP (sec. 9).
Sandbox import — actually import into the student-facing sandbox course and click every clickable item to verify. Inspect both convert-time logs and runtime behavior.
Production import — once sandbox passes, push to production.

Version numbering Don't fix everything at once for production. Save each fix attempt as a separate ZIP (v1, v2, …) — that guarantees rollback and a paper trail. DOCT-α went all the way from v1 to v11.

3. The 8-Point Defect Catalog

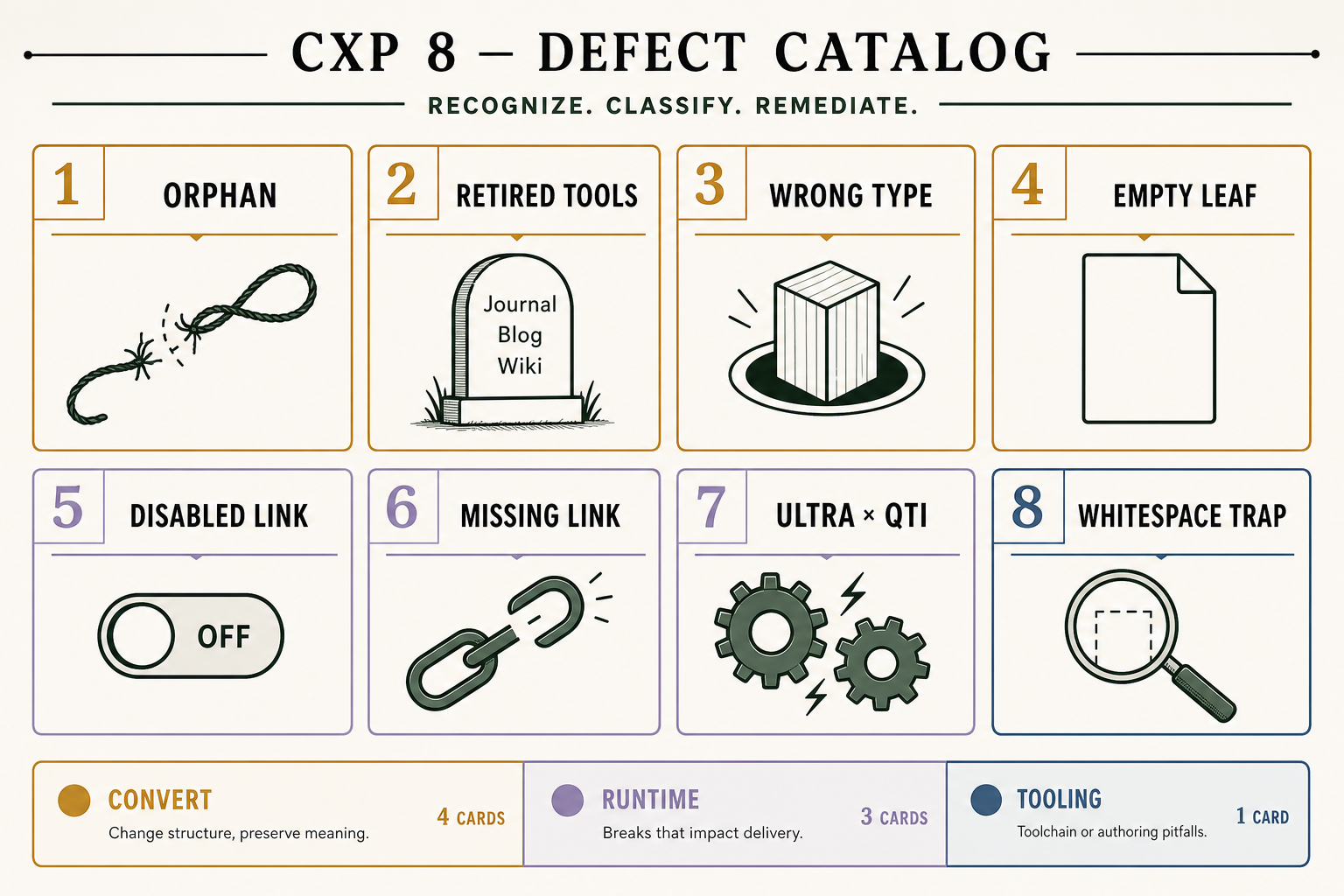

CXP 8 — defect catalog at a glance — Fig. 3The eight defect classes — convert-time (4), runtime (3), tooling (1)

The 8 defect classes below were observed and resolved directly in this session. FAIL = user impact, WARN = informational, INFO = meta. Tag:

CONVERT — Fails with explicit error at Blackboard import time
RUNTIME — Imports cleanly but breaks when the user clicks / uses it
TOOLING — Common pitfalls when writing fixes

1 Orphan manifest declarations CONVERT

Manifest declares it but the actual .dat file is missing from the ZIP, or vice versa. Fails at convert time with a "missing referenced file"-style error, or silently skipped.

Diagnostic

comm -23 \
  <(grep -oE 'identifier="res[0-9]+"' imsmanifest.xml | sort -u) \
  <(ls *.dat | sed 's/\.dat$//' | sort -u)

Fix

If the file should exist: copy from the original archive
If it should not exist: remove the <resource> declaration from the manifest

Real case

DOCT-α v1: Codex stripped res00104~126 (23 LINKs) + res00022~25 (4 announcements) from the .dat files but left the declarations in the manifest. 27 orphan declarations → package integrity broken.

2 Retired-tool handlers (Journal / Blog / Wiki) CONVERT

Blackboard ULTRA does not support Journal, Blog, Wiki tools. <CONTENTHANDLER value="resource/x-bb-journallink"/> using such a retired handler causes explicit import failure.

Symptom (import log)

[Journal Item] — Blogs aren't supported at this time and were removed.
[Journal Item] — The content item failed to convert.

Cascade chain

Blackboard sees res00013 (x-bb-blog) → "Blogs aren't supported, removed" → drops res00013
res00122 LINK points to res00013 (now gone) → orphan LINK silently dropped
res00068 CONTENT has journallink handler expecting target → can't convert

Fix (3 things together)

Change the visible CONTENT's CONTENTHANDLER to resource/x-bb-document + change RENDERTYPE to REGULAR
Delete the tool-data resource file (BLOG, JOURNAL, WIKI payload)
Delete the LINK file that connected them
Strip both deletions' <resource> declarations from the manifest

📝 Script: fix_journal_blog_dependency.py

3 Wrong-type substitution CONVERT

The manifest's declared bb:type does not match the actual root XML element of the .dat file.

Canonical example

res ID	Manifest `bb:type`	Actual root	Result
res00128	`course/x-bb-coursemessagefolder`	`<questestinterop>`	FAIL

How it happens

A coding agent decides 'let's put a new assessment here' and overwrites an existing res ID with a different-type payload. The manifest is not touched → mismatch.

Fix

Restore the .dat file from the original. Never overwrite an existing resource ID with a different type; add a new resource with a fresh ID instead.

4 Empty leaf content items CONVERT

A student-visible <CONTENT> item that has:

<DESCRIPTION value=""/> (empty description) AND
<TEXT/> (empty body) AND
ISFOLDER value="false" (not a folder) AND
<FILES><FILE absent (no file attachment either)

Blackboard converter rejects it.

False positives — be careful

asmt-test-link / forumlink / courselink wrappers are intentionally empty (they point to a target via LINK) — skip
ULTRA_ASSESSMENT_MARKER=true on an ULTRA assignment surface — skip (see defect 7)
resource/x-bb-folder / x-bb-lesson — folder itself — skip

Fix

Restore description + body from the original archive
Or change type to folder
Or add minimum content directly (e.g., use TITLE alone as the message)

5 Disabled LINK resources RUNTIME

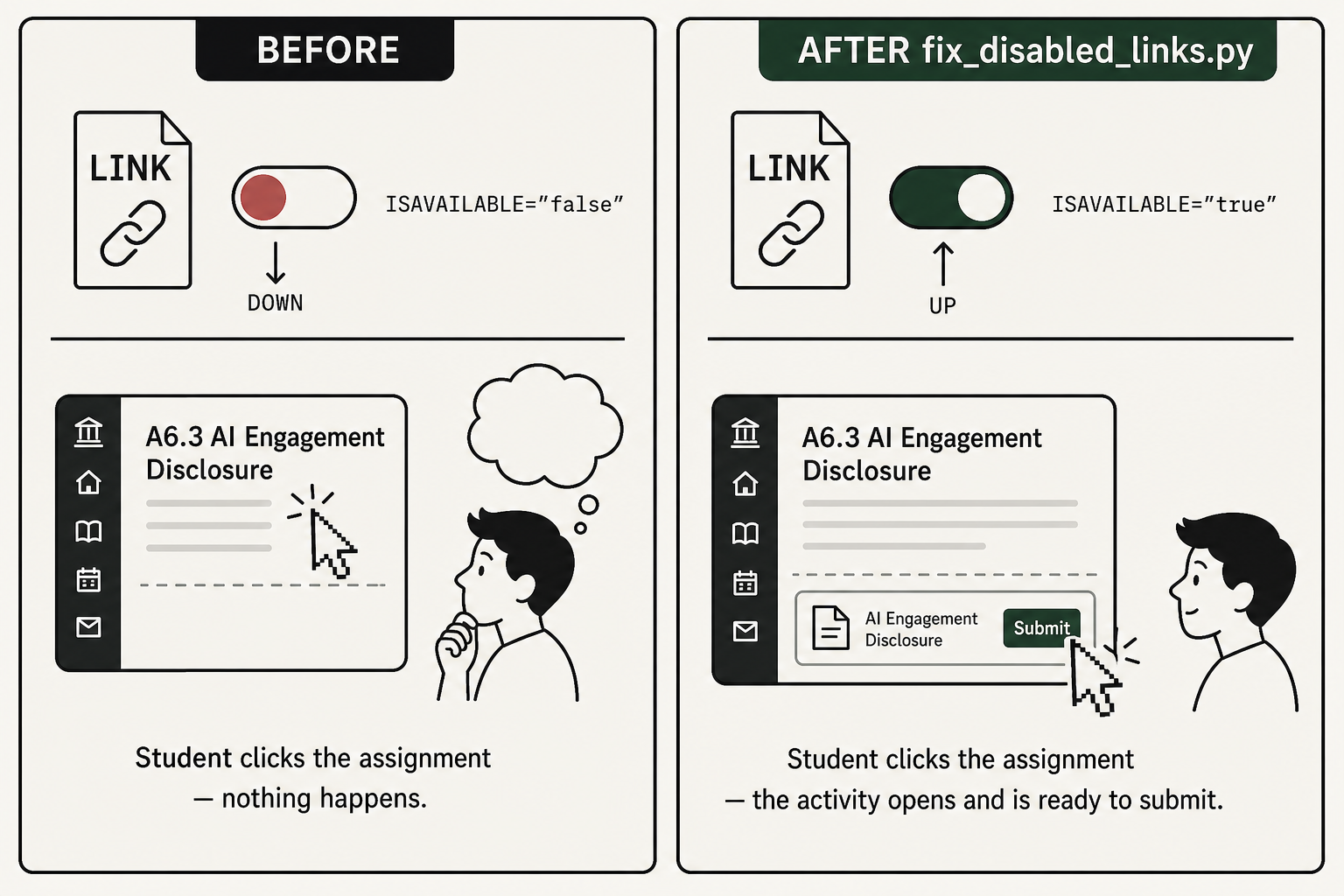

Disabled vs enabled LINK — before and after fix_disabled_links.py — Fig. 7Disabled vs enabled LINK — fix_disabled_links.py turns the silent failure back into a working click

The <LINK> connecting a visible click-target (asmt-test-link / forumlink / courselink) to its underlying assessment/forum is set to <ISAVAILABLE value="false"/>. Clicking does nothing.

Symptom

No convert-time error. Gradebook column is created. Clicking does nothing or MjYwNTA0L* -style base64 access-code reference appears (decoded: 260504/_666818_1/2.log — a server log path, not the actual error message).

Origin (Spring archive carryover)

An instructor pre-built assignments and disabled them until release in a prior term; the disabled flag carries over on export.

Fix

import re
c = re.sub(
    r'<ISAVAILABLE\s+value="false"\s*/>',
    '<ISAVAILABLE value="true"/>',
    c,
)

📝 Script: fix_disabled_links.py

Real case

DOCT-α v5: 6 core assignments ([User Testing Assignment], [Final Capstone Submission], [Storyboard Challenge], [Design Draft], [Usability Plan], [Case Study]) all blocked by disabled LINKs.

6 Missing LINK resources RUNTIME

More severe than defect 5: both the LINK file AND its manifest declaration were stripped together. The package stays internally consistent (no orphan declarations) → defect 1's audit cannot detect it.

Diagnostic

Find any visible click-target CONTENT (handler = asmt-test-link / forumlink / courselink) that has no available LINK pointing to it as REFERRER.

Fix

Restore the LINK file from the original archive, flip ISAVAILABLE=true, add the declaration to the manifest.

📝 Script: restore_missing_links.py

Real case

UND-β: Original 31 LINKs → current 24. 7 stripped (all of them were disabled and Codex decided they were "useless" and removed them). 7 assignments fail to open.
GRAD-γ: Original 17 LINKs → current 0. All deleted during the Option A restructure. 14 assignments + 2 discussion/courselinks fail to open.

Why convert-time audit (defect 1) cannot catch this If manifest declaration and .dat file disappear together, internal consistency holds and defect 1 misses it. Only a separate visible-click-target ↔ LINK match check surfaces it.

7 ULTRA marker × classic-QTI conflict RUNTIME

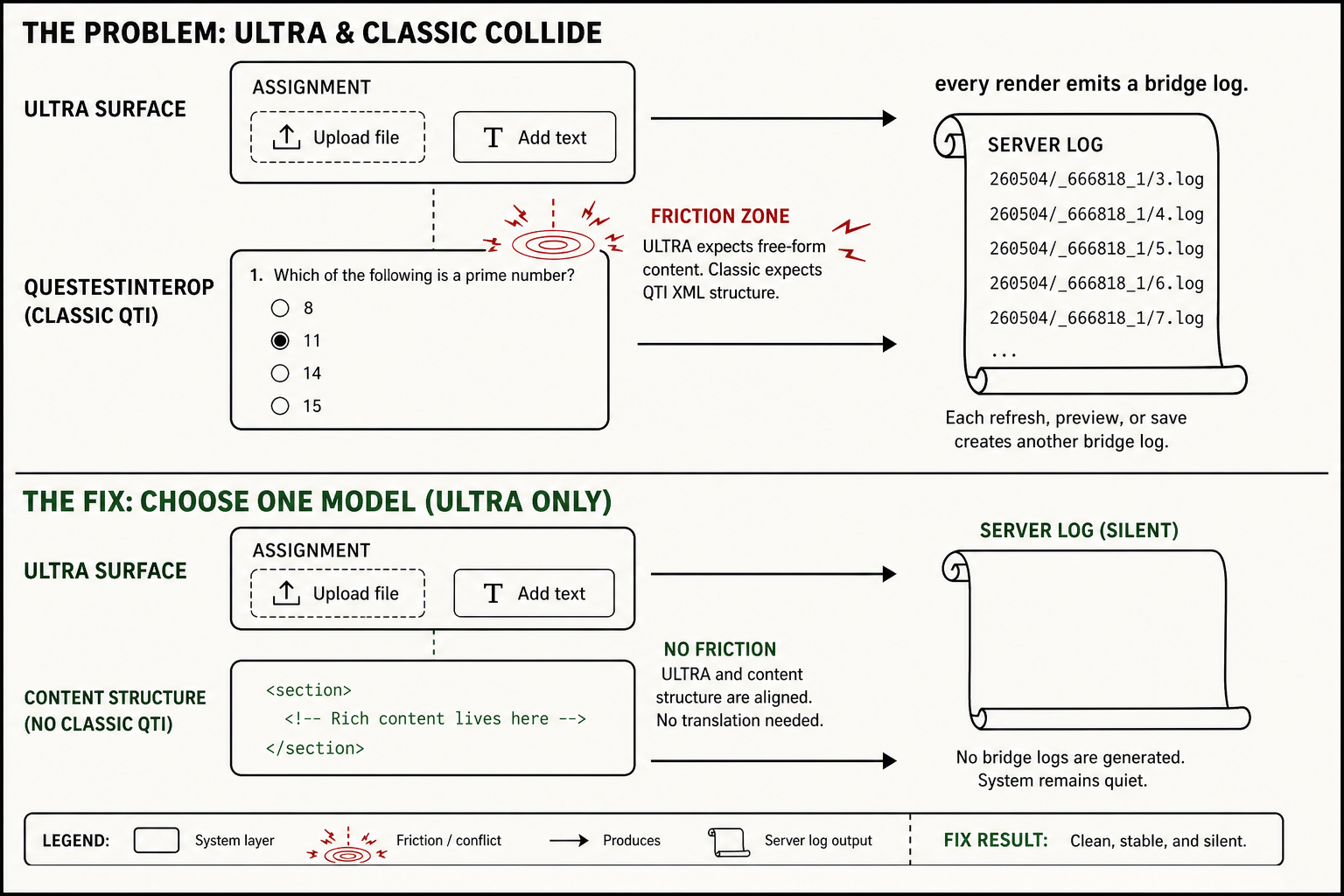

ULTRA × classic-QTI conflict and the empty-section fix — Fig. 4ULTRA assignment surface vs classic QTI body — friction zone and the empty-section fix

The hardest case. Occurs when an asmt-test-link item carries <EXTENDEDDATA><ENTRY key="ULTRA_ASSESSMENT_MARKER">true</ENTRY></EXTENDEDDATA> AND the questestinterop file at the end of the LINK chain has <item> content inside its <section>.

Symptom

The item opens normally. But each render appends a sequential entry to the server log: 260504/_666818_1/3.log, 4.log, 5.log, ...

Root cause

The marker tells ULTRA, "render this as a ULTRA-native assignment surface (file upload + text submission)." But the underlying QTI is in the classic Blackboard test format (<questestinterop><assessment><section><item>). Every render, ULTRA bridges the two models and emits a conversion-trace log entry.

Fix — empty section preservation

Remove every <item> from inside the QTI body's <section>. Keep the marker. Empty section = "this is a ULTRA assignment; don't try to convert classic questions."

<questestinterop>
  <assessment title="...">
    <assessmentmetadata>...</assessmentmetadata>
    <rubric>...</rubric>
    <presentation_material>...</presentation_material>
    <section>
      <sectionmetadata>...</sectionmetadata>
      <!-- Must be empty; no <item> -->
    </section>
  </assessment>
</questestinterop>

Important — do NOT apply this to real quizzes Apply this fix only when the wrapper is asmt-test-link + has a ULTRA marker + the intent is a ULTRA assignment (file upload). If real multiple-choice quiz items live inside (e.g., GRAD-γ's Module 1-6 Quizzes), never delete the <item>s (the quiz breaks).

📝 Script: fix_ultra_qti_conflict.py

v6 failure case (DO NOT REPEAT)

If you try to silence this log by removing the ULTRA marker itself → the item stops opening in ULTRA. The marker is the trigger for ULTRA rendering. Emptying the QTI body is the right answer, not removing the marker.

8 Whitespace-tolerant ISAVAILABLE replace TOOLING

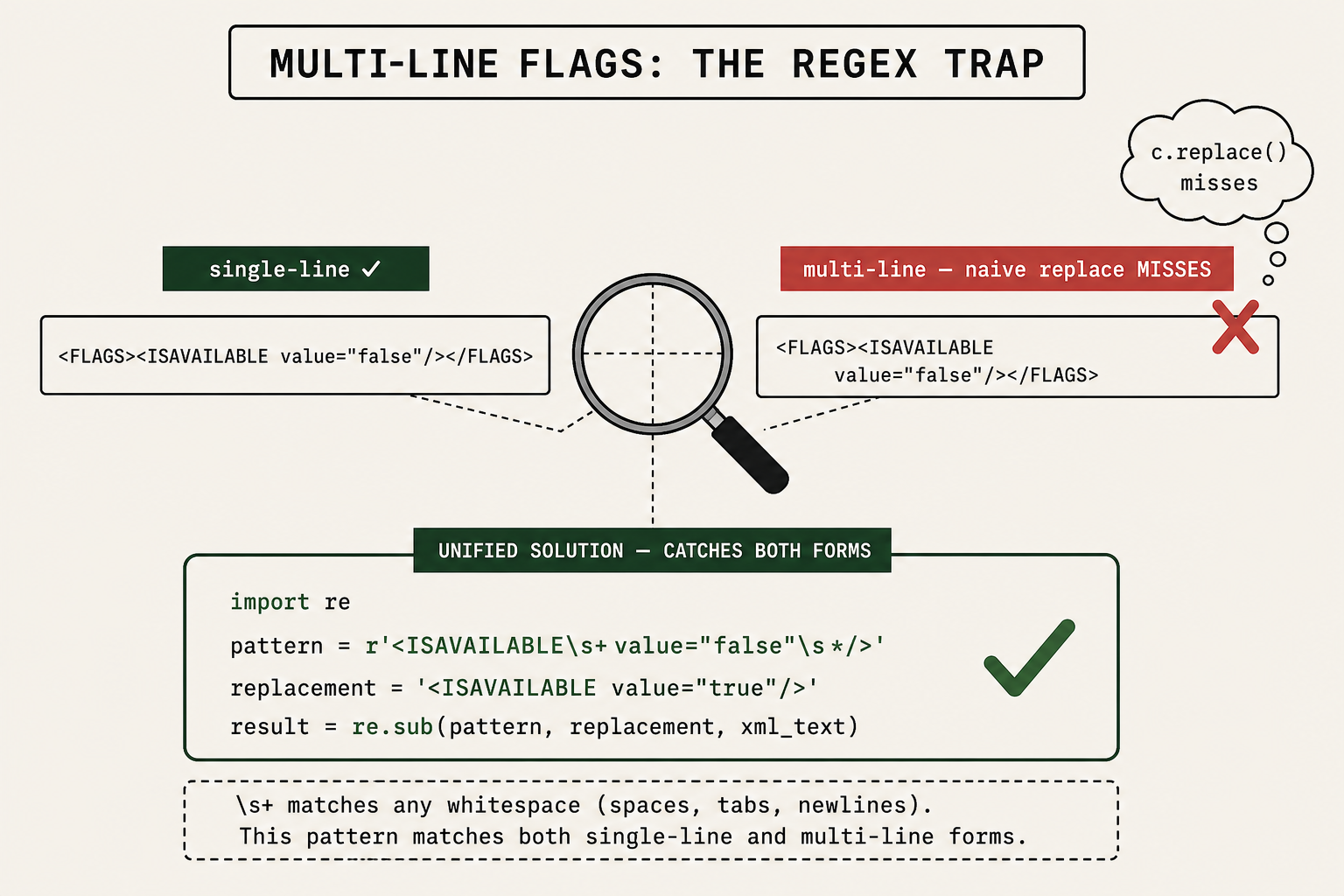

Multi-line FLAGS regex trap — Fig. 8Single-line literal replace silently misses multi-line FLAGS — the whitespace-tolerant regex catches both

The most common trap when writing fix scripts for defects 5/6.

The trap

Blackboard's LINK XML appears in two formats:

Single-line:
<FLAGS><ISAVAILABLE value="false"/></FLAGS>

Multi-line:
<FLAGS><ISAVAILABLE
  value="false"/></FLAGS>

Both formats can co-exist within the same archive. A naive single-line literal replace silently misses the multi-line case.

Wrong (single-line literal)

c = c.replace(
    '<ISAVAILABLE value="false"/>',
    '<ISAVAILABLE value="true"/>'
)
# Misses 5 of 7 multi-line cases

Right (regex with whitespace tolerance)

import re
c = re.sub(
    r'<ISAVAILABLE\s+value="false"\s*/>',
    '<ISAVAILABLE value="true"/>',
    c
)
# Matches every case

Real case

UND-β v2 fix: only 2 of 7 disabled LINKs were fixed; 5 remained. Discovered during the v4 audit → reapplied with a multi-line-tolerant regex.

4. Diagnostic Tool — 8-Point Audit Script

The script below audits all 8 defect classes in a single pass. Extract the package to a folder, pass that path as an argument, and it prints a PASS/FAIL report. Exit code 0 = clean, 1 = needs work.

python audit_8point.py /path/to/extracted/package

Example output (all PASS):

======================================================================
8-Point Blackboard ULTRA Import Recipe Audit  --  /tmp/cat100_audit
======================================================================
  [PASS] 1. Orphan manifest decls
         decls=211 files=211 missing=0 orphan=0
  [PASS] 2. Retired-tool handlers in CONTENT
         hits=0 []
  [PASS] 3. Wrong-type substitution
         violations=0 []
  [PASS] 4. Empty leaf content items
         leaves=0 []
  [PASS] 5. Disabled LINKs blocking visible items
         disabled=0 []
  [PASS] 6. Click-targets without available LINK
         orphan_clicks=0 []
  [PASS] 7. ULTRA-marker x classic-QTI conflict
         conflicts=0
  [PASS] 8. Whitespace-tolerant ISAVAILABLE coverage
         multiline_misses=0

Overall: ALL PASS

Operating rule This script should be run automatically right before every packaging. Edits can introduce new defects (e.g., body replacement breaking manifest integrity, file deletion creating orphans). Audit every time → if all PASS, package.

5. Troubleshooting Decision Tree

Trace sandbox-import results in the following order:

6. What NOT to do

Either broken in this session or expensive to recover from when made:

1. Modify the original archive ZIP 03_Original-ZIPs-Backup/ArchiveExFile_*.zip Never modify this file. All fixes happen on the working copy. The original is ground truth + rollback material.

2. Overwrite an existing res ID with a different-type payload Don't reason "this slot is empty, let's put a new assessment here." The manifest's bb:type and the .dat file's root XML element must match. If you need new content, issue a fresh res ID and add a new declaration.

3. Removing ULTRA_ASSESSMENT_MARKER Removing the marker to silence the access-code log → the item stops opening in ULTRA (DOCT-α v6 failure case). The marker is the trigger for ULTRA rendering. The true fix is emptying the QTI body's <item>.

4. Removing <item> from a real Quiz QTI Defect 7 fix is correct only when ULTRA assignment surface (file upload) is the intent. Removing items from a real multi-choice quiz (e.g., GRAD-γ Module 1-6 Quizzes with <response_lid>) destroys the entire quiz.

5. Deleting a disabled LINK outright Deleting LINKs because "this LINK is disabled, useless" creates defect 6 (missing LINK). Even if disabled, the LINK file must remain so the chain between visible click-target and underlying data holds. Flipping is the right answer; deleting is not.

6. Replacing ISAVAILABLE with a single-line literal A literal-string replace like c.replace('<ISAVAILABLE value="false"/>', ...) silently misses multi-line FLAGS XML cases. Always use re.sub(r'<ISAVAILABLE\s+value="false"\s*/>', ...).

7. Building new FORUM resources by hand Adding a module-specific Discussion forum requires <FORUM> data + forumlink wrapper + LINK + manifest declaration + item-tree placement — all five. Doing this by hand risks ID collisions and broken chains. Reusing an existing generic Discussion board with subject-prefix conventions ([M1 [Tension Mapper]] etc.) is much safer.

8. Bundle every fix into a single package Fixing every defect at once in v1 makes it impossible to trace what broke. One defect = one version. DOCT-α v1→v11 looks long, but each step lets you diagnose and record exactly what broke.

9. Ignore CDT/CST timezone DUE date format: 2026-05-30 23:59:00 CDT. From May to the first Sunday of November = CDT (Central Daylight Time, UTC-5); otherwise CST (UTC-6). Summer term is all CDT. Blackboard's parser doesn't validate the timezone string but consistency is still better.

10. Try to recompute .bb-package-sig This signature file can be ignored (Blackboard import does not validate it). Recomputing is impossible anyway (it would need Blackboard's private key). Leave it as-is and ZIP.

7. Real Cases — [Summer Term] Fix Marathon

The distillation source for this guide. 11+ iterations across three courses recorded in a single day (2026-05-04).

DOCT-α (LXD doctoral capstone) — 11 iterations

Build	Defect / change	Result
`v1`	baseline (Codex 5/3 build)	D6 + D5 latent
`v2`	[Journal Item] payload restored	D2 surfaced
`v3`	D2 fix (Journal/Blog dependency removed)	discussions work, assignments do not open
`v4`	content reorganization (AI Coding Assistants section nested under Module 6)	still does not open
`v5`	D5 fix (6 disabled LINK flip)	opens, but access-code log appears
`v6`	Failed — attempted to remove the ULTRA marker	items stopped opening (reverted)
`v7/v8`	byte-exact restore from v5	returned to v5 state
`v9`	D7 fix verified on 2 items	access-code log disappeared
`v10`	D7 fix applied to all 6 ULTRA items	all pass
`v11`	embedded 3 generated diagrams (design.md, 7-step, guardrails)	final / 25.2 MB

UND-β (Communication, undergrad 1-2) — 6 iterations

Build	Defect / change
baseline	5/2 build
`v2`	D6 fix (7 missing LINKs restored + COURSE_ASSESSMENT verified)
`v3`	all 17 graded items updated to [Summer Term] dates (no Sundays, no Juneteenth, ENFORCE_DUE_DATE matched to baseline)
`v4`	Module 6 Lesson 6.2 — AI + GitHub Pages content + Playwright screenshots; D8 fix (5 additional multi-line ISAVAILABLE cases found)
`v5`	rewritten in undergrad-1/2 tone + curated YouTube / Medium / GitHub Blog links
`v6`	embedded 7 ChatGPT-generated diagrams, M5 dual-path AI avatar (SadTalker + ElevenLabs vs PowerPoint Recording + Gemini Live), [Teaching Sim]→[Teaching Sim] naming unified, M1 [Tension Mapper]+[Ethics Tutor] URL+screenshot, M2 "GitHub Codex" wording clarified. final / 18.3 MB

GRAD-γ (Critical/Cultural Aspects of Tech, master's) — 5 iterations

Build	Defect / change
baseline	5/2 Option A restructure
`v2`	D6 fix — restored all 17 LINKs that had been stripped (the most severe case)
`v3`	M1 [Tension Mapper] / M2 [Teaching Sim] / M4 [Ethics Tutor] guidance + Playwright screenshots + [Discussion Board] prefix-tagged discussion pattern
`v4`	17 graded items updated to [Summer Term] dates
`v5`	added 2 generated concept diagrams ([Tension Mapper] + [Ethics Tutor] anchors). final / 38.9 MB

D7 known limitation in GRAD-γ 6 module quizzes show the ULTRA marker × classic-QTI MC content conflict pattern, but they are real multi-choice quizzes — <item> cannot be removed. Functional impact zero (students take quizzes normally), the runtime telemetry log accumulation is ignored. Documented caveat.

8. Beyond defect fixes

8.1 Image / media embedding

To inline-render a slide, infographic, or screenshot in a content page, three things must happen together:

csfiles/home_dir/ with the __xid-NNNNNN_1.<ext> filename (xid ≥ 990000 recommended to avoid collisions)
Generate a same-named sidecar XML (__xid-NNNNNN_1.<ext>.xml)
imsmanifest.xml's <resources> block — add the <resource> declaration

Then reference it in the content page's body HTML via Blackboard's embed syntax:

<a data-bbid="img-NNNNNN_1"
   data-bbfile="{&quot;linkName&quot;:&quot;diagram.png&quot;,
     &quot;mimeType&quot;:&quot;image/png&quot;,
     &quot;alternativeText&quot;:&quot;Description&quot;,
     &quot;isDecorative&quot;:false,
     &quot;render&quot;:&quot;inline&quot;}"
   href="@X@EmbeddedFile.requestUrlStub@X@bbcswebdav/xid-NNNNNN_1">
</a>

📝 Script: embed_image.py — all three steps in one.

8.2 Replacing content page body HTML

Blackboard stores content-page bodies as entity-encoded HTML inside <CONTENT>...<BODY><TEXT>HTML</TEXT></BODY>. < → <, > → >, etc.

📝 Script: replace_body.py — Replaces only the body; everything else (DATES, FLAGS, CONTENTHANDLER, PARENTID...)is preserved.

python replace_body.py res00157.dat new_body.html \
    --updated "2026-05-04 04:00:00 CDT"

8.3 Bulk due-date update

Gradebook resource's <OUTCOMEDEFINITION> blocks contain <DUE> fields. Define the schedule in JSON and apply in bulk:

{
  "Module 1: Quiz": "2026-05-27 23:59:00 CDT",
  "Module 1: Assess - [Tension Rationale]": "2026-05-30 23:59:00 CDT",
  ...
}

📝 Script: update_due_dates.py

Constraints: no Sundays, no Juneteenth (2026-06-19), within the term window. ENFORCE_DUE_DATE stays at baseline (the instructor decides item-by-item in the UI).

8.4 Slim package — selective import

When you want to update just one module without re-importing the whole course.

Strategy: build a slim ZIP containing just the Module's item subtree + system resources (res00001 Child Courses + res00010 Content Handler Data + .bb-package-info / .bb-log-info / .bb-package-sig). DOCT-α example: 20MB → 294KB.

Or more simply: in the Blackboard UI's selective import dialog, import the full package but check only the desired module.

8.5 Discussion-board connection — without adding new FORUMs

Adding a new <FORUM> resource for module-specific discussions is high-risk (ID collisions, item-tree breakage). The safe pattern:

Reuse the existing course-wide Discussion board (e.g., "[Course Discussion Board]")
Agree on a subject-prefix convention in each module's Explore page ([M1 [Tension Mapper]], [M2 [Teaching Sim]], [M4 [Ethics Tutor]])
Specify the post format (e.g., 100–150 words, ≥ 1 peer reply)

Discussion connection without structural change. The pattern used in GRAD-γ.

9. Packaging & verification

9.1 PowerShell Compress-Archive

Safest way on Windows:

$src = "C:\path\to\extracted_package_dir"
$dst = "C:\path\to\output\package_v6.zip"
if (Test-Path $dst) { Remove-Item $dst }
Compress-Archive -Path "$src\*" -DestinationPath $dst -CompressionLevel Optimal
$hash = (Get-FileHash $dst -Algorithm SHA256).Hash
$size = (Get-Item $dst).Length
Write-Output "Packaged: $size bytes / SHA256 $hash"

Path separator note PowerShell's Compress-Archive may write backslash separators in the ZIP. unzip warns ("appears to use backslashes as path separators") but Blackboard import works fine. Ignorable.

9.2 Bash zip (Linux / Git Bash)

cd /path/to/extracted_package_dir
zip -r ../package_v6.zip . -x "*.DS_Store"

9.3 Verification checklist

Re-extract the package and run the 8-point audit (verify no corruption from compression)
Manifest declared count == .dat file count
SHA-256 recorded (rollback + reproducibility)
Import into the sandbox course → check the convert log
Click every visible item personally and verify it opens correctly
Gradebook column creation + due-date correctness
Verify once more from the student view (or instructor preview)

10. FAQ

What is the MjYwNTA0L* access-code log?

A base64-encoded path. Decoded, it is a server-side log file path like 260504/_666818_1/2.log. It is not the actual error message — the contents live in the log file at that path. To inspect, give the path to your Blackboard admin and ask them to pull the file. It is not shown in the student view, so there may be no functional impact.

Why does a ULTRA assignment surface end up with <item>s in its underlying QTI?

Two paths:

The original course started in classic Blackboard, and when migrated to ULTRA only the marker was added — the body's questestinterop structure remained as-is.
Someone (e.g., Codex) hand-added <item>s to silence a convert-time warning like "Empty assessments converted to Question Banks."

Both cases produce a ULTRA marker + non-empty section conflict → defect 7. The right answer is to empty the <item>s (when the intent is an assignment).

My fix script produced two <organizations> blocks in the manifest

Common pitfall when building a slim package. A single-string find like find('<organizations>') misses the multi-line attribute case (e.g. <organizations\n default="...">). Match with a regex like r'<organizations\b.*?</organizations>' to fix.

I only want to update one module — selective import vs slim package, which is better?

Selective import is safer — Blackboard handles dependencies automatically. The slim package requires system-resource dependencies like res00001 + res00010 plus a freshly built manifest, which is hand-intensive. If the package is very large (tens of MB) or your institution has disabled selective import, slim is the only option.

How do I pick xid numbers consistently?

Existing archive xids are usually 8 digits (e.g., __xid-190865580_1). When adding new media, use a much larger prefix to avoid collisions. This session used the 990000~999999 range (992xxx, 993xxx, 994xxx per course). Check the existing course's xid distribution first, then pick a range clearly above it.

Why do I not need to rebuild .bb-package-sig?

Blackboard import does not validate this signature file (and you couldn't recompute it anyway — it would need Blackboard's private key). Just including it in the ZIP as-is is enough. Verified across DOCT-α v1→v11 (all using the same .bb-package-sig) — no issues.

I want students to submit a file via the ULTRA assignment surface — how?

All three conditions must hold:

The wrapper's CONTENTHANDLER is resource/x-bb-asmt-test-link
EXTENDEDDATA carries <ENTRY key="ULTRA_ASSESSMENT_MARKER">true</ENTRY>
The questestinterop file at the end of the LINK chain has an empty <section> (only <sectionmetadata>, no <item>)

When all three hold, ULTRA renders the file upload + text submission UI. The defect 7 fix exists precisely to guarantee condition (3).

Student data (submissions, grades) is mixed into the package

Dangerous. If the export options include a checkbox like "Include student records," uncheck it and re-export. If such data is already present, search for and delete the following before importing:

res*ATTEMPT*.dat
res*SUBMISSION*.dat
users.xml
csfiles/home_dir/users/
<ATTEMPT> blocks inside the Gradebook

FERPA compliance — there is a risk of exposing student PII.

Can these fix scripts be applied to other LMSes (Canvas, Moodle)?

No. These scripts are specifically tied to Blackboard's IMS Common Cartridge + Blackboard extension attributes (bb:file, bb:title, bb:type). Canvas and Moodle use their own export formats with different manifest structures. The 8-point recipe's concepts transfer (orphan declarations, retired tools, disabled flags, …) but the code does not.

11. Downloads

▶ Reusable Skill Bundle

Blackboard CXP Fix Skill — for Claude Code / Codex CLI

The 8-point recipe + all fix scripts + reference notes packaged as an auto-invocable agent skill. No personal information — pure skill registration. Any instructor / TA / coding agent can drop it in and use it.

unzip blackboard-cxp-fix-skill.zip -d ~/.claude/skills/

📦 Download ZIP Preview SKILL.md Install / Usage Open directory

All scripts — MIT-style ("use freely with attribution"). Python 3.8+ with standard library only.

audit_8point.py 8-point recipe diagnostic script. Audits every defect class in one pass. PASS/FAIL report + exit code. fix_disabled_links.py Defect 5 fix — flip disabled LINKs to active. Uses a multi-line-tolerant regex. restore_missing_links.py Defect 6 fix — restore missing LINKs from the original archive + update the manifest. Compares two directories (orig + cur). fix_journal_blog_dependency.py Defect 2 fix — remove Journal/Blog/Wiki dependencies. CONTENTHANDLER → document, drop tool data + LINK, clean up the manifest. fix_ultra_qti_conflict.py Defect 7 fix — restore the QTI section of ULTRA-marker assignments to its empty form. ⚠ Real quizzes are auto-skipped. update_due_dates.py Bulk-update DUE dates inside Gradebook OUTCOMEDEFINITION blocks. JSON schedule input. Sundays/Juneteenth auto-warned. embed_image.py Image → csfiles + sidecar + manifest in one shot. Also prints the embed snippet. replace_body.py Replace CONTENT body. HTML entity encoding handled automatically. DATES/FLAGS/CONTENTHANDLER preserved.

Recommended workflow

audit_8point.py baseline
Defect found → apply the corresponding fix script
audit_8point.py re-verify
all PASS → packaging

12. References

Primary session record

Desktop\24_Teaching\Summer2026_CourseRevisions_2026-05-01\AIL606_IMPORT_FIX_RECORD_2026-05-04.md — full v1→v11 incident record
~\.claude\projects\C--Users-jewoo\memory\reference_blackboard_ultra_import_fixes.md — auto-memory recipe
ObsidianVault\wiki\sources\[Summer Term] Course Prep Import Fix Marathon 2026-05-04.md — vault session record

Standards

IMS Common Cartridge — manifest standard base
Blackboard ULTRA Course Materials — ULTRA-supported content types
WCAG 2.2 Quick Reference — accessibility

Related entity pages (vault)

wiki/entities/[Summer Term] UA Course Prep.md
wiki/entities/[Tension Mapping App].md
wiki/entities/[Ethics Tutor].md

Auto-memory entries

project_summer2026_courses.md
reference_blackboard_ultra_import_fixes.md ← distillation source for this guide
feedback_html_guides.md — HTML guidebook pattern (the format this page follows)

Author

Jewoong Moon, Ph.D.
Assistant Professor of Instructional Technology
Educational Leadership, Policy, and Technology Studies (ELPTS)
University of Alabama
jmoon19@ua.edu

Disclosure

This is a practical onboarding guide based on Blackboard ULTRA behavior observed on 2026-05-04. Blackboard internals change over time, and this guide covers only the 8 defect classes reproduced in this session. Other failure modes (LDAP integration, gradebook calculation columns, external-tool OAuth) require separate investigation. Validate every fix in a sandbox before applying to production.

Blackboard CXP — Modify & Re-Import Workflow

0. About this guidebook

Use cases this guide solves

Scope limits

1. Anatomy of a CXP package

1.1 Files in the ZIP

1.2 imsmanifest.xml — the package index

1.3 The LINK chain — how visible items connect to underlying data

2. Standard workflow

3. The 8-Point Defect Catalog

Diagnostic

Fix

Real case

Symptom (import log)

Cascade chain

Fix (3 things together)

Canonical example

How it happens

Fix

False positives — be careful

Fix

Symptom

Origin (Spring archive carryover)

Fix

Real case

Diagnostic

Fix

Real case

Symptom

Root cause

Fix — empty section preservation

v6 failure case (DO NOT REPEAT)

The trap

Wrong (single-line literal)

Right (regex with whitespace tolerance)

Real case

4. Diagnostic Tool — 8-Point Audit Script

5. Troubleshooting Decision Tree

6. What NOT to do

7. Real Cases — [Summer Term] Fix Marathon

DOCT-α (LXD doctoral capstone) — 11 iterations

UND-β (Communication, undergrad 1-2) — 6 iterations

GRAD-γ (Critical/Cultural Aspects of Tech, master's) — 5 iterations

8. Beyond defect fixes

8.1 Image / media embedding

8.2 Replacing content page body HTML

8.3 Bulk due-date update

8.4 Slim package — selective import

8.5 Discussion-board connection — without adding new FORUMs

9. Packaging & verification

9.1 PowerShell Compress-Archive

9.2 Bash zip (Linux / Git Bash)

9.3 Verification checklist

10. FAQ

11. Downloads

Blackboard CXP Fix Skill — for Claude Code / Codex CLI

Recommended workflow

12. References

Primary session record

Standards

Related entity pages (vault)

Auto-memory entries

Author

Disclosure
